The PGN parser. More...

#include <pgnparser.h>

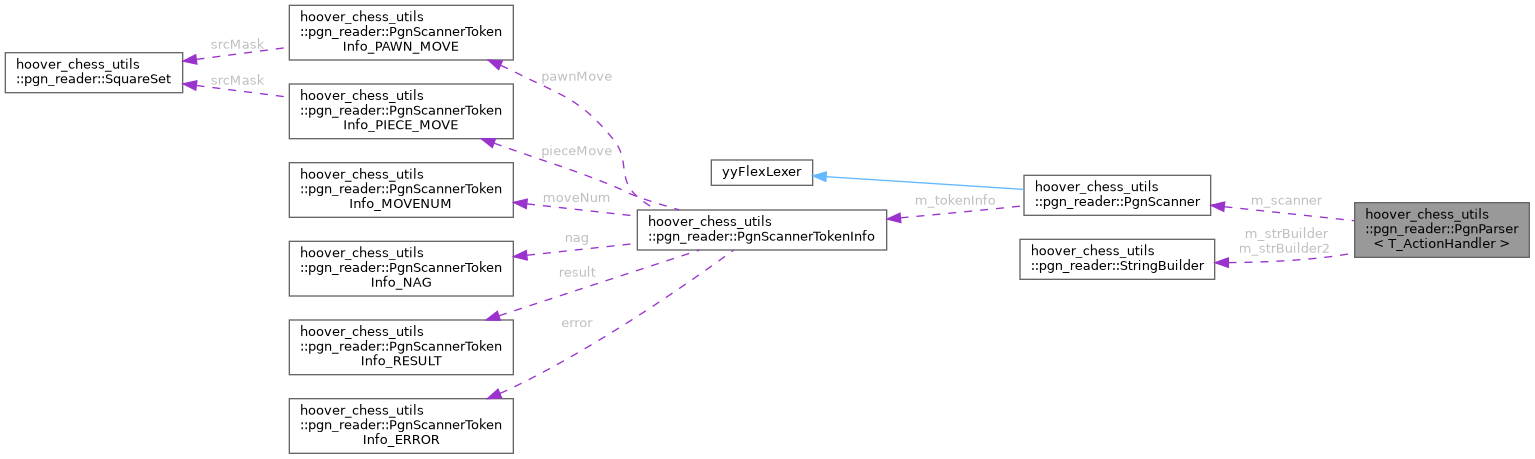

Collaboration diagram for hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >:

[legend]

Public Member Functions
	PgnParser (PgnScanner &scanner, T_ActionHandler &actionHandler)
	Constructor.

	PgnParser (const PgnParser &)=delete

	PgnParser (PgnParser &&)=delete

PgnParser &	operator= (const PgnParser &) &=delete

PgnParser &	operator= (PgnParser &&) &=delete

void	parse ()

Private Member Functions
void	unexpectedTokenError (PgnErrorCode errorCode, std::uint32_t expectedTokenMask, PgnScannerToken token)

void	parseTagPair ()

PgnScannerToken	parseLine (PgnScannerToken token)

PgnScannerToken	parseVariation ()

void	handleMovePawn (const PgnScannerTokenInfo_PAWN_MOVE &move) const

void	handleMovePawnCapture (const PgnScannerTokenInfo_PAWN_MOVE &move) const

void	handleMovePawnPromo (const PgnScannerTokenInfo_PAWN_MOVE &move) const

void	handleMovePawnPromoCapture (const PgnScannerTokenInfo_PAWN_MOVE &move) const

void	handleMoveKnight (const PgnScannerTokenInfo_PIECE_MOVE &move) const

void	handleMoveBishop (const PgnScannerTokenInfo_PIECE_MOVE &move) const

void	handleMoveRook (const PgnScannerTokenInfo_PIECE_MOVE &move) const

void	handleMoveQueen (const PgnScannerTokenInfo_PIECE_MOVE &move) const

void	handleMoveKing (const PgnScannerTokenInfo_PIECE_MOVE &move) const

void	handleMoveShortCastle () const

void	handleMoveLongCastle () const

void	handleMoveNum (const PgnScannerTokenInfo_MOVENUM &moveNum) const

PgnScannerToken	parseNagsAfterMove ()

PgnScannerToken	parseComments (PgnScannerToken token)

void	parseCommentBlock ()

void	parseSingleLineComment ()

void	flushPendingComments ()

Private Attributes
PgnScanner &	m_scanner

T_ActionHandler &	m_actionHandler

StringBuilder	m_strBuilder { }

StringBuilder	m_strBuilder2 { }

bool	m_inMoveTextSection { }

std::vector< std::string >	m_pendingComments { }

Detailed Description

template<typename T_ActionHandler>
class hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >

The PGN parser.

Template Parameters

T_ActionHandler Semantic action handler. See PgnParser_NullActions for description.

Grammar for PGN parsing
Rule			Parsing function	Remarks
PGN	⇒	GAME* COMMENT* `<END_OF_FILE>`	`parse()`	Any number of games with possibly trailing comments.
GAME	⇒	TAGPAIRS MOVETEXT	`parse()`	A PGN game consists of a list of tag pairs followed by move text section.
TAGPAIRS	⇒	(COMMENT* TAGPAIR)*	`parse()`	List of PGN key/value tags.
TAGPAIR	⇒	`<TAG_START>` `<TAG_KEY>` `<TAG_VALUE>` `<TAG_END>`	`parseTagPair()`	A single PGN key/value tag.
MOVETEXT	⇒	LINE `<RESULT>`	`parse()`	The move text section of a PGN game.
LINE	⇒	(COMMENT \| `<MOVENUM>`)* (MOVE_ITEM (COMMENT \| `<MOVENUM>` \| MOVE_ITEM \| VARIATION)* )?	`parseLine()`	A line consists of any number of moves, interleaved with optional comments, move numbers, and variations. A variation may not appear before the first move. Move numbers are completely optional in PGNs. When present, however, they are validated to be correct by `PgnReader`.
VARIATION	⇒	`<VARIATION_START>` LINE `<VARIATION_END>`	`parseVariation()`	Variation is an alternative line to a move.
MOVE_ITEM	⇒	MOVE <nag>*	`parseLine()` `parseNagsAfterMove()`	A move followed by any number of numeric annotation glyphs (NAGs)
MOVE	⇒	`PgnScannerToken::MOVE_PAWN` \|	`parseLine()`	A pawn advancing move (non-promoting)
		`PgnScannerToken::MOVE_PAWN_CAPTURE` \|		A pawn capture move (non-promoting)
		`PgnScannerToken::MOVE_PAWN_PROMO` \|		A pawn advancing move (promoting)
		`PgnScannerToken::MOVE_PAWN_PROMO_CAPTURE` \|		A pawn capture move (promoting)
		`PgnScannerToken::MOVE_PIECE_KNIGHT` \|		Knight move
		`PgnScannerToken::MOVE_PIECE_BISHOP` \|		Bishop move
		`PgnScannerToken::MOVE_PIECE_ROOK` \|		Rook move
		`PgnScannerToken::MOVE_PIECE_QUEEN` \|		Queen move
		`PgnScannerToken::MOVE_PIECE_KING` \|		King move
		`PgnScannerToken::MOVE_SHORT_CASTLE` \|		Short castling move (O-O)
		`PgnScannerToken::MOVE_LONG_CASTLE`		Long castling move (O-O-O)
COMMENT	⇒	`<COMMENT_START>` (`<COMMENT_TEXT>` \| `<COMMENT_NEWLINE>`)* `<COMMENT_END>`	`parseCommentBlock()`	PGN block comment.
COMMENT	⇒	`<COMMENT_TEXT>`	`parseSingleLineComment()`	PGN single line comment.

Strings may use backslashes for quoting the next character as is. This is useful only for quoting a quote (") or a backslash (\) character.

The rules are derived from the description in https://www.saremba.de/chessgml/standards/pgn/pgn-complete.htm .

Remarks

The grammar used by this parser differs from the grammar in https://www.saremba.de/chessgml/standards/pgn/pgn-complete.htm#c18 in various ways:

Comments are not included in the specification. However, they must be handled by a concrete parser implementation.
The syntax in specification allows variations without parent moves. This implementation decided to disallow that in the parser rather than in the later stages.
The syntax in specification allows NAGs without the preceding token being a move or another NAG. This implementation is stricter.

Constructor & Destructor Documentation

◆ PgnParser() [1/3]

template<typename T_ActionHandler >

hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::PgnParser	(	PgnScanner &	scanner,
		T_ActionHandler &	actionHandler
	)

inline

Constructor.

Parameters

[in]	scanner	PGN scanner
[in]	actionHandler	Semantic action handler. See `PgnParser_NullActions` for description.

◆ PgnParser() [2/3]

template<typename T_ActionHandler >

hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::PgnParser ( const PgnParser< T_ActionHandler > & )

delete

◆ PgnParser() [3/3]

template<typename T_ActionHandler >

hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::PgnParser ( PgnParser< T_ActionHandler > && )

delete

Member Function Documentation

◆ flushPendingComments()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::flushPendingComments ( )

inlineprivate

◆ handleMoveBishop()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::handleMoveBishop ( const PgnScannerTokenInfo_PIECE_MOVE & move ) const

inlineprivate

◆ handleMoveKing()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::handleMoveKing ( const PgnScannerTokenInfo_PIECE_MOVE & move ) const

inlineprivate

◆ handleMoveKnight()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::handleMoveKnight ( const PgnScannerTokenInfo_PIECE_MOVE & move ) const

inlineprivate

◆ handleMoveLongCastle()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::handleMoveLongCastle ( ) const

inlineprivate

◆ handleMoveNum()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::handleMoveNum ( const PgnScannerTokenInfo_MOVENUM & moveNum ) const

inlineprivate

◆ handleMovePawn()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::handleMovePawn ( const PgnScannerTokenInfo_PAWN_MOVE & move ) const

inlineprivate

◆ handleMovePawnCapture()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::handleMovePawnCapture ( const PgnScannerTokenInfo_PAWN_MOVE & move ) const

inlineprivate

◆ handleMovePawnPromo()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::handleMovePawnPromo ( const PgnScannerTokenInfo_PAWN_MOVE & move ) const

inlineprivate

◆ handleMovePawnPromoCapture()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::handleMovePawnPromoCapture ( const PgnScannerTokenInfo_PAWN_MOVE & move ) const

inlineprivate

◆ handleMoveQueen()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::handleMoveQueen ( const PgnScannerTokenInfo_PIECE_MOVE & move ) const

inlineprivate

◆ handleMoveRook()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::handleMoveRook ( const PgnScannerTokenInfo_PIECE_MOVE & move ) const

inlineprivate

◆ handleMoveShortCastle()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::handleMoveShortCastle ( ) const

inlineprivate

◆ operator=() [1/2]

template<typename T_ActionHandler >

PgnParser & hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::operator= ( const PgnParser< T_ActionHandler > & ) &

delete

◆ operator=() [2/2]

template<typename T_ActionHandler >

PgnParser & hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::operator= ( PgnParser< T_ActionHandler > && ) &

delete

◆ parse()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::parse ( )

inline

◆ parseCommentBlock()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::parseCommentBlock ( )

inlineprivate

◆ parseComments()

template<typename T_ActionHandler >

PgnScannerToken hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::parseComments ( PgnScannerToken token )

inlineprivate

◆ parseLine()

template<typename T_ActionHandler >

PgnScannerToken hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::parseLine ( PgnScannerToken token )

inlineprivate

◆ parseNagsAfterMove()

template<typename T_ActionHandler >

PgnScannerToken hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::parseNagsAfterMove ( )

inlineprivate

◆ parseSingleLineComment()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::parseSingleLineComment ( )

inlineprivate

◆ parseTagPair()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::parseTagPair ( )

inlineprivate

◆ parseVariation()

template<typename T_ActionHandler >

PgnScannerToken hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::parseVariation ( )

inlineprivate

◆ unexpectedTokenError()

template<typename T_ActionHandler >

void hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::unexpectedTokenError	(	PgnErrorCode	errorCode,
		std::uint32_t	expectedTokenMask,
		PgnScannerToken	token
	)

inlineprivate

Member Data Documentation

◆ m_actionHandler

template<typename T_ActionHandler >

T_ActionHandler& hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::m_actionHandler

private

◆ m_inMoveTextSection

template<typename T_ActionHandler >

bool hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::m_inMoveTextSection { }

private

◆ m_pendingComments

template<typename T_ActionHandler >

std::vector<std::string> hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::m_pendingComments { }

private

◆ m_scanner

template<typename T_ActionHandler >

PgnScanner& hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::m_scanner

private

◆ m_strBuilder

template<typename T_ActionHandler >

StringBuilder hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::m_strBuilder { }

private

◆ m_strBuilder2

template<typename T_ActionHandler >

StringBuilder hoover_chess_utils::pgn_reader::PgnParser< T_ActionHandler >::m_strBuilder2 { }

private

The documentation for this class was generated from the following file:

pgn-reader/src/pgnparser.h
