The PGN scanner (lexer) More...

#include <pgnscanner.h>

Inheritance diagram for hoover_chess_utils::pgn_reader::PgnScanner:

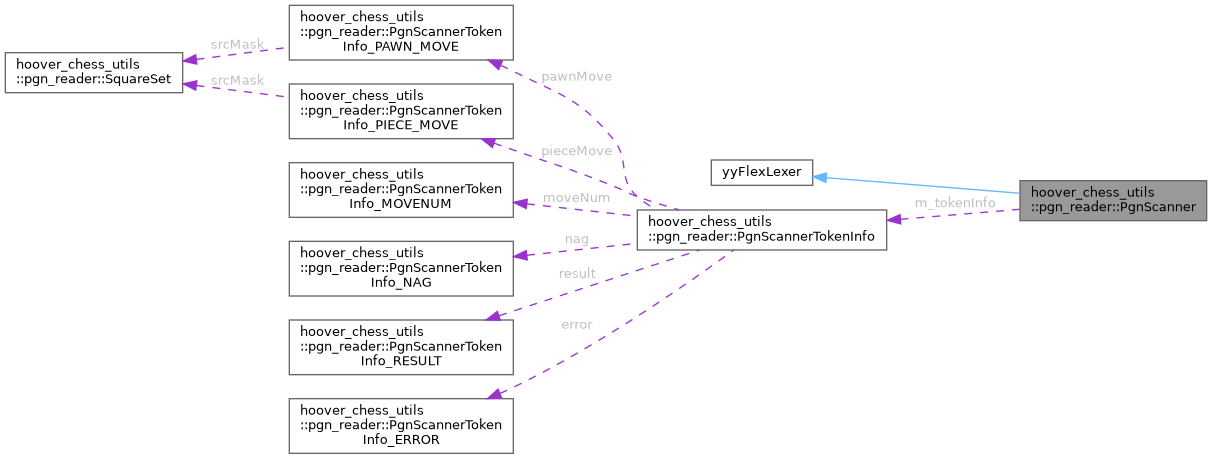

Collaboration diagram for hoover_chess_utils::pgn_reader::PgnScanner:

[legend]

Public Member Functions
	PgnScanner (const char *inputData, std::size_t inputLen) noexcept
	Constructor.

	PgnScanner (const PgnScanner &)=delete

	PgnScanner (PgnScanner &&)=delete

PgnScanner &	operator= (const PgnScanner &) &=delete

PgnScanner &	operator= (PgnScanner &&) &=delete

PgnScannerToken	nextTokenNoThrowOnErrorToken ()
	Scans input and returns the next token. On bad input, error token is returned instead of throwing an exception.

PgnScannerToken	nextToken ()
	Scans input and returns the next token.

PgnScannerToken	getCurrentToken () const noexcept
	Returns the previously scanned token.

const PgnScannerTokenInfo &	getTokenInfo () const noexcept
	Returns additional information on the token.

Static Public Member Functions
static constexpr const char *	scannerTokenToString (PgnScannerToken token) noexcept
	Returns a string for a scanner token.

Protected Member Functions
int	LexerInput (char *buf, int maxSize)
	Provides more input to the parent class (general flex version)

std::size_t	LexerInput (char *buf, std::size_t maxSize)
	Provides more input to the parent class (Apple flex version)

Private Member Functions
PgnScannerToken	yylexex ()
	The generated lexer.

template<typename RetType , bool digitsOnly>
RetType	asciiToUnsigned (const char str, const char end, const char *tokenType)
	Ascii to unsigned integer conversion.

void	setTokenInfo_MOVENUM (const char str, const char end)

void	setTokenInfo_PAWN_MOVE (SquareSet srcMask, Square dstSq, Piece promoPiece)

void	setTokenInfo_PIECE_MOVE (SquareSet srcMask, bool capture, Square dstSq)

void	setTokenInfo_NAG (std::uint8_t nag)

void	setTokenInfo_RESULT (PgnResult result)

void	setTokenInfo_ERROR (const char *errorMessage)

PgnScannerToken	tokenizePieceMove (std::string_view str)

PgnScannerToken	tokenizeUnusualPawnMove (std::string_view str)

Static Private Member Functions
static constexpr Square	charCoordToSq (char colChar, char rowChar) noexcept
	Translates character coordinates to a square.

static constexpr SquareSet	colCharToMask (char colChar) noexcept
	Translates column coordinate (file) to a square set.

static constexpr SquareSet	rowCharToMask (char rowChar) noexcept
	Translates row coordinate (rank) to a square set.

static constexpr Piece	getPieceForChar (char c) noexcept

static constexpr PgnScannerToken	getMovePieceScannerTokenForChar (char c) noexcept

Private Attributes
const char *	m_inputData

std::size_t	m_inputLeft

PgnScannerToken	m_curToken { }

PgnScannerTokenInfo	m_tokenInfo

Static Private Attributes
static constexpr std::array< Piece, 32 >	ctCharToPieceTable

static constexpr std::array< PgnScannerToken, 32 >	ctCharToMovePieceTable

Detailed Description

The PGN scanner (lexer)

Constructor & Destructor Documentation

◆ PgnScanner() [1/3]

hoover_chess_utils::pgn_reader::PgnScanner::PgnScanner	(	const char *	inputData,
		std::size_t	inputLen
	)

inlinenoexcept

Constructor.

Parameters

[in]	inputData	Input data
[in]	inputLen	Input length

◆ PgnScanner() [2/3]

hoover_chess_utils::pgn_reader::PgnScanner::PgnScanner ( const PgnScanner & )

delete

◆ PgnScanner() [3/3]

hoover_chess_utils::pgn_reader::PgnScanner::PgnScanner ( PgnScanner && )

delete

Member Function Documentation

◆ asciiToUnsigned()

template<typename RetType , bool digitsOnly>

RetType hoover_chess_utils::pgn_reader::PgnScanner::asciiToUnsigned	(	const char *	str,
		const char *	end,
		const char *	tokenType
	)

inlineprivate

Ascii to unsigned integer conversion.

Template Parameters

RetType	Unsigned integer type
digitsOnly	Whether the input is guaranteed to include only digits

Parameters

[in]	str	Start of string to convert (inclusive)
[in]	end	End of string to convert (exclusive)
[in]	tokenType	Name of the token type, e.g., `"NAG"`. Used for error reporting

Returns: Unsigned integer

Exceptions

PgnError(PgnErrorCode::BAD_CHARACTER) Integer overflow

Precondition: When digitsOnly = true, this function assumes that the string consists only of numbers.

In case digitsOnly is:

true: This function assumes that the string consists only of numbers. If this is not the case, this function results in undefined behavior.
false: This function returns early when the first non-digit character is encountered.

◆ charCoordToSq()

static constexpr Square hoover_chess_utils::pgn_reader::PgnScanner::charCoordToSq	(	char	colChar,
		char	rowChar
	)

inlinestaticconstexprprivatenoexcept

Translates character coordinates to a square.

Parameters

[in]	colChar	Column character (file), range: ['a', 'h']
[in]	rowChar	Row character (rank), range: ['1', '8']

Returns: Corresponding square

◆ colCharToMask()

static constexpr SquareSet hoover_chess_utils::pgn_reader::PgnScanner::colCharToMask ( char colChar )

inlinestaticconstexprprivatenoexcept

Translates column coordinate (file) to a square set.

Parameters

[in] colChar Column character (file), range: ['a', 'h']

Returns: Corresponding set of squares

◆ getCurrentToken()

PgnScannerToken hoover_chess_utils::pgn_reader::PgnScanner::getCurrentToken ( ) const

inlinenoexcept

Returns the previously scanned token.

Returns: Token

The token in textual format can be obtained with calls to YYText() and YYLeng() provided by the parent class.

Certain tokens are decoded by the scanner. The decoded information is obtained with a call to getTokenInfo().

See also: https://westes.github.io/flex/manual/Cxx.html

◆ getMovePieceScannerTokenForChar()

static constexpr PgnScannerToken hoover_chess_utils::pgn_reader::PgnScanner::getMovePieceScannerTokenForChar ( char c )

inlinestaticconstexprprivatenoexcept

◆ getPieceForChar()

static constexpr Piece hoover_chess_utils::pgn_reader::PgnScanner::getPieceForChar ( char c )

inlinestaticconstexprprivatenoexcept

◆ getTokenInfo()

const PgnScannerTokenInfo & hoover_chess_utils::pgn_reader::PgnScanner::getTokenInfo ( ) const

inlinenoexcept

Returns additional information on the token.

Returns: Additional inforation on the current token

◆ LexerInput() [1/2]

int hoover_chess_utils::pgn_reader::PgnScanner::LexerInput	(	char *	buf,
		int	maxSize
	)

inlineprotected

Provides more input to the parent class (general flex version)

Parameters

[in]	buf	Buffer for input data
[in]	maxSize	Maximum size of data to be provided

Returns: Number of bytes provided

See also: https://westes.github.io/flex/manual/Cxx.html

◆ LexerInput() [2/2]

std::size_t hoover_chess_utils::pgn_reader::PgnScanner::LexerInput	(	char *	buf,
		std::size_t	maxSize
	)

inlineprotected

Provides more input to the parent class (Apple flex version)

Parameters

[in]	buf	Buffer for input data
[in]	maxSize	Maximum size of data to be provided

Returns: Number of bytes provided

See also: https://westes.github.io/flex/manual/Cxx.html

◆ nextToken()

PgnScannerToken hoover_chess_utils::pgn_reader::PgnScanner::nextToken ( )

inline

Scans input and returns the next token.

Returns: Token

Exceptions

PgnError(PgnErrorCode::BAD_CHARACTER) Erroneous scanner input

The token in textual format can be obtained with calls to YYText() and YYLeng() provided by the parent class.

Certain tokens are decoded by the scanner. The decoded information is obtained with a call to getTokenInfo().

See also: https://westes.github.io/flex/manual/Cxx.html

◆ nextTokenNoThrowOnErrorToken()

PgnScannerToken hoover_chess_utils::pgn_reader::PgnScanner::nextTokenNoThrowOnErrorToken ( )

inline

Scans input and returns the next token. On bad input, error token is returned instead of throwing an exception.

Returns: Token

This function is mainly intended for error recovery.

◆ operator=() [1/2]

PgnScanner & hoover_chess_utils::pgn_reader::PgnScanner::operator= ( const PgnScanner & ) &

delete

◆ operator=() [2/2]

PgnScanner & hoover_chess_utils::pgn_reader::PgnScanner::operator= ( PgnScanner && ) &

delete

◆ rowCharToMask()

static constexpr SquareSet hoover_chess_utils::pgn_reader::PgnScanner::rowCharToMask ( char rowChar )

inlinestaticconstexprprivatenoexcept

Translates row coordinate (rank) to a square set.

Parameters

[in] rowChar Row character (rank), range: ['1', '8']

Returns: Corresponding set of squares

◆ scannerTokenToString()

static constexpr const char * hoover_chess_utils::pgn_reader::PgnScanner::scannerTokenToString ( PgnScannerToken token )

inlinestaticconstexprnoexcept

Returns a string for a scanner token.

Parameters

[in] token PGN scanner token

Returns: Corresponding string

◆ setTokenInfo_ERROR()

void hoover_chess_utils::pgn_reader::PgnScanner::setTokenInfo_ERROR ( const char * errorMessage )

inlineprivate

◆ setTokenInfo_MOVENUM()

void hoover_chess_utils::pgn_reader::PgnScanner::setTokenInfo_MOVENUM	(	const char *	str,
		const char *	end
	)

inlineprivate

◆ setTokenInfo_NAG()

void hoover_chess_utils::pgn_reader::PgnScanner::setTokenInfo_NAG ( std::uint8_t nag )

inlineprivate

◆ setTokenInfo_PAWN_MOVE()

void hoover_chess_utils::pgn_reader::PgnScanner::setTokenInfo_PAWN_MOVE	(	SquareSet	srcMask,
		Square	dstSq,
		Piece	promoPiece
	)

inlineprivate

◆ setTokenInfo_PIECE_MOVE()

void hoover_chess_utils::pgn_reader::PgnScanner::setTokenInfo_PIECE_MOVE	(	SquareSet	srcMask,
		bool	capture,
		Square	dstSq
	)

inlineprivate

◆ setTokenInfo_RESULT()

void hoover_chess_utils::pgn_reader::PgnScanner::setTokenInfo_RESULT ( PgnResult result )

inlineprivate

◆ tokenizePieceMove()

PgnScannerToken hoover_chess_utils::pgn_reader::PgnScanner::tokenizePieceMove ( std::string_view str )

inlineprivate

◆ tokenizeUnusualPawnMove()

PgnScannerToken hoover_chess_utils::pgn_reader::PgnScanner::tokenizeUnusualPawnMove ( std::string_view str )

inlineprivate

◆ yylexex()

PgnScannerToken hoover_chess_utils::pgn_reader::PgnScanner::yylexex ( )

private

The generated lexer.

Returns: Token

Member Data Documentation

◆ ctCharToMovePieceTable

constexpr std::array<PgnScannerToken, 32> hoover_chess_utils::pgn_reader::PgnScanner::ctCharToMovePieceTable

staticconstexprprivate

◆ ctCharToPieceTable

constexpr std::array<Piece, 32> hoover_chess_utils::pgn_reader::PgnScanner::ctCharToPieceTable

staticconstexprprivate

◆ m_curToken

PgnScannerToken hoover_chess_utils::pgn_reader::PgnScanner::m_curToken { }

private

◆ m_inputData

const char* hoover_chess_utils::pgn_reader::PgnScanner::m_inputData

private

◆ m_inputLeft

std::size_t hoover_chess_utils::pgn_reader::PgnScanner::m_inputLeft

private

◆ m_tokenInfo

PgnScannerTokenInfo hoover_chess_utils::pgn_reader::PgnScanner::m_tokenInfo

private

The documentation for this class was generated from the following file:

pgn-reader/src/pgnscanner.h
