The chessboard. More...

#include <chessboard.h>

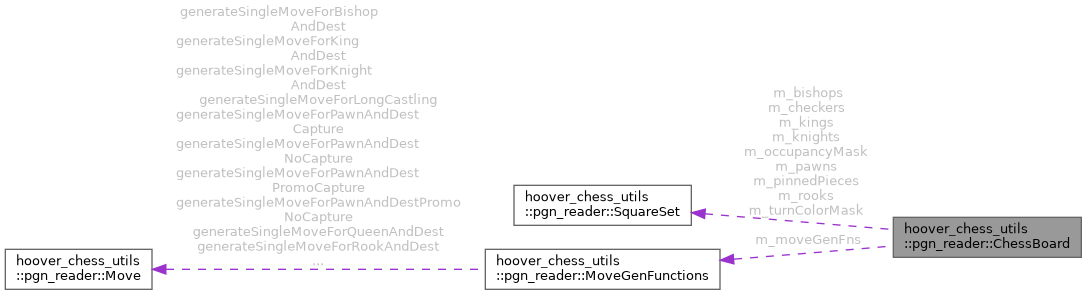

Collaboration diagram for hoover_chess_utils::pgn_reader::ChessBoard:

[legend]

Public Member Functions
	ChessBoard () noexcept
	Constructor (default)

	ChessBoard (const ChessBoard &) noexcept=default
	Constructor (copy)

	ChessBoard (ChessBoard &&) noexcept=default
	Constructor (move)

ChessBoard &	operator= (const ChessBoard &) noexcept=default
	Assignment.

ChessBoard &	operator= (ChessBoard &&) noexcept=default
	Move assignment.

	~ChessBoard () noexcept=default
	Destructor.

void	setBoard (const ArrayBoard &board, Square whiteLongCastleRook, Square whiteShortCastleRook, Square blackLongCastleRook, Square blackShortCastleRook, Square epSquare, std::uint_fast8_t halfMoveClock, std::uint_fast32_t plyNum)
	Sets the board from an array board (aka Mailbox)

void	getArrayBoard (ArrayBoard &out_board) const noexcept
	Extracts the current position as an `ArrayBoard`.

void	setBoard (const BitBoard &board, Square whiteLongCastleRook, Square whiteShortCastleRook, Square blackLongCastleRook, Square blackShortCastleRook, Square epSquare, std::uint_fast8_t halfMoveClock, std::uint_fast32_t plyNum)
	Sets the board from `SquareSet`s (bit board)

void	loadFEN (std::string_view fen)
	Sets the board from FEN.

PositionStatus	determineStatus () const noexcept
	Determines the status of the position.

void	loadStartPos () noexcept
	Loads the starting position.

void	printBoard () const
	Prints the current board to stdout. This is intended only for debugging purposes.

Piece	getSquarePieceNoColor (Square sq) const noexcept
	Returns the piece on a specified square.

PieceAndColor	getSquarePiece (Square sq) const noexcept
	Returns the piece and color on a specified square.

SquareSet	getOccupancyMask () const noexcept
	Returns squares that are occupied by pieces (including pawns).

SquareSet	getWhitePieces () const noexcept
	Returns squares occupied by white pieces (including pawns).

SquareSet	getBlackPieces () const noexcept
	Returns squares occupied by white pieces (including pawns).

SquareSet	getPiecesInTurn () const noexcept
	Returns squares that are occupied by pieces (including pawns) that belong to the side to move.

SquareSet	getPawns () const noexcept
	Returns squares occupied by pawns.

SquareSet	getKnights () const noexcept
	Returns squares occupied by knights.

SquareSet	getBishops () const noexcept
	Returns squares occupied by bishops.

SquareSet	getRooks () const noexcept
	Returns squares occupied by rooks.

SquareSet	getQueens () const noexcept
	Returns squares occupied by queens.

SquareSet	getBishopsAndQueens () const noexcept
	Returns squares occupied by bishops and queens (diagonal sliders)

SquareSet	getRooksAndQueens () const noexcept
	Returns squares occupied by rooks and queens (horizontal/vertical sliders)

SquareSet	getKings () const noexcept
	Returns squares occupied by kings.

Square	getKingInTurn () const noexcept
	Returns the square of the king in turn.

Square	getKingNotInTurn () const noexcept
	Returns the square of the king not in turn.

bool	isInCheck () const noexcept
	Returns whether the king is in check.

SquareSet	getCheckers () const noexcept
	Returns squares occupied by checkers.

SquareSet	getPinnedPieces () const noexcept
	Returns squares occupied by absolutely pinned pieces.

Square	getWhiteLongCastleRook () const noexcept
	Shorthand for `getCastlingRook(Color::WHITE, false)`.

Square	getWhiteShortCastleRook () const noexcept
	Shorthand for `getCastlingRook(Color::WHITE, true)`.

Square	getBlackLongCastleRook () const noexcept
	Shorthand for `getCastlingRook(Color::BLACK, false)`.

Square	getBlackShortCastleRook () const noexcept
	Shorthand for `getCastlingRook(Color::BLACK, true)`.

Square	getCastlingRook (Color c, bool shortCastling) const noexcept
	Returns castling rook square if castling rights apply or `Square::NONE` if no castling rights.

Square	getEpSquare () const noexcept
	Returns the en-passant square or `Square::NONE` if en-passant capture is not possible.

std::uint_fast8_t	getHalfMoveClock () const noexcept
	Current half-move clock.

std::uint_fast32_t	getCurrentPlyNum () const noexcept
	Full move counter in plies.

Color	getTurn () const noexcept
	Returns side to move.

Move	generateSingleMoveForPawnAndDestNoCapture (SquareSet srcSqMask, Square dst) const noexcept
	Generates a legal non-promoting, non-capturing pawn move with a known destination square.

Move	generateSingleMoveForPawnAndDestCapture (SquareSet srcSqMask, Square dst) const noexcept
	Generates a legal non-promoting, capturing pawn move with a known destination square.

Move	generateSingleMoveForPawnAndDestPromoNoCapture (SquareSet srcSqMask, Square dst, Piece promo) const noexcept
	Generates a legal promoting, non-capturing pawn move with a known destination square.

Move	generateSingleMoveForPawnAndDestPromoCapture (SquareSet srcSqMask, Square dst, Piece promo) const noexcept
	Generates a legal promoting, capturing pawn move with a known destination square.

Move	generateSingleMoveForKnightAndDest (SquareSet srcSqMask, Square dst) const noexcept
	Generates a legal knight move with a known destination square. May be capturing.

Move	generateSingleMoveForBishopAndDest (SquareSet srcSqMask, Square dst) const noexcept
	Generates a legal bishop move with a known destination square. May be capturing.

Move	generateSingleMoveForRookAndDest (SquareSet srcSqMask, Square dst) const noexcept
	Generates a legal rook move with a known destination square. May be capturing.

Move	generateSingleMoveForQueenAndDest (SquareSet srcSqMask, Square dst) const noexcept
	Generates a legal queen move with a known destination square. May be capturing.

Move	generateSingleMoveForKingAndDest (SquareSet srcSqMask, Square dst) const noexcept
	Generates a legal king move with a known destination square. May be capturing.

Move	generateSingleMoveForShortCastling () const noexcept
	Generates a legal short castling move.

Move	generateSingleMoveForLongCastling () const noexcept
	Generates a legal long castling move.

std::size_t	generateMovesForPawnAndDestNoCapture (ShortMoveList &moves, SquareSet srcSqMask, Square dst) const noexcept
	Generates a list of legal non-promoting, non-capturing pawn moves with a known destination square.

std::size_t	generateMovesForPawnAndDestCapture (ShortMoveList &moves, SquareSet srcSqMask, Square dst) const noexcept
	Generates a list of legal non-promoting, capturing pawn moves with a known destination square.

std::size_t	generateMovesForPawnAndDestPromoNoCapture (ShortMoveList &moves, SquareSet srcSqMask, Square dst, Piece promo) const noexcept
	Generates a list of legal promoting, non-capturing pawn moves with a known destination square.

std::size_t	generateMovesForPawnAndDestPromoCapture (ShortMoveList &moves, SquareSet srcSqMask, Square dst, Piece promo) const noexcept
	Generates a list of legal promoting, capturing pawn moves with a known destination square.

std::size_t	generateMovesForKnightAndDest (ShortMoveList &moves, SquareSet srcSqMask, Square dst) const noexcept
	Generates a list of legal knight moves with a known destination square. May be capturing.

std::size_t	generateMovesForBishopAndDest (ShortMoveList &moves, SquareSet srcSqMask, Square dst) const noexcept
	Generates a list of legal bishop moves with a known destination square. May be capturing.

std::size_t	generateMovesForRookAndDest (ShortMoveList &moves, SquareSet srcSqMask, Square dst) const noexcept
	Generates a list of legal rook moves with a known destination square. May be capturing.

std::size_t	generateMovesForQueenAndDest (ShortMoveList &moves, SquareSet srcSqMask, Square dst) const noexcept
	Generates a list of legal queen moves with a known destination square. May be capturing.

std::size_t	generateMovesForKingAndDest (ShortMoveList &moves, SquareSet srcSqMask, Square dst) const noexcept
	Generates a list of legal king moves with a known destination square. May be capturing.

std::size_t	generateMovesForShortCastling (ShortMoveList &moves) const noexcept
	Generates the short castling move in a list, if legal.

std::size_t	generateMovesForLongCastling (ShortMoveList &moves) const noexcept
	Generates the long castling move in a list, if legal.

std::size_t	generateMoves (MoveList &moves) const noexcept
	Generates a list of all legal moves for the current position.

std::size_t	getNumberOfLegalMoves () const noexcept
	Returns the number of legal moves for the current position. This function is mostly useful for calculating the moves in perft leaf positions.

bool	hasLegalMoves () const noexcept
	Determines whether any legal moves as available in the current position.

void	doMove (Move m) noexcept
	Applies a move on the current position. The move is assumed to be legal, and it must be from one of the generators. No legality checks are done by this function.

bool	operator== (const ChessBoard &o) const noexcept
	Comparison operator (equality)

Private Member Functions
void	updateCheckersAndPins () noexcept
	Determines checkers and pinned pieces.

void	validateBoard ()
	Validates the board for items that are common for both `setBoard()` and `loadFEN()` and sets `m_checkers`.

void	setCastlingRook (Color c, bool shortCastling, Square sq) noexcept
	Sets/resets castling rights and the associated rook.

Square &	getCastlingRookRef (Color c, bool shortCastling) noexcept
	Gets a reference to the castling rights rook for direct read/write access.

void	calculateMasks (const ArrayBoard &board) noexcept
	Calculates bitboard masks for an `ArrayBoard` object.

Static Private Member Functions
static constexpr std::size_t	getCastlingRookIndex (Color c, bool shortCastling) noexcept
	Returns the array index for a castling rook.

Private Attributes
SquareSet	m_occupancyMask { SquareSet::row(0U) \| SquareSet::row(1U) \| SquareSet::row(6U) \| SquareSet::row(7U) }
	Bit board of occupied squares.

SquareSet	m_turnColorMask { SquareSet::row(0U) \| SquareSet::row(1U) }
	Occupied squares that have the same color piece as `getTurn()`

SquareSet	m_pawns { SquareSet::row(1U) \| SquareSet::row(6U) }
	Pawns.

SquareSet	m_knights
	Knights.

SquareSet	m_kings { SquareSet::square(Square::E1) \| SquareSet::square(Square::E8) }
	Kings.

SquareSet	m_bishops
	Bishops and queens.

SquareSet	m_rooks
	Rooks and queens.

SquareSet	m_checkers { }
	Squares where there is a checker.

SquareSet	m_pinnedPieces { }
	Squares with pinned pieces.

const MoveGenFunctions *	m_moveGenFns
	Move generator functions for this position.

std::uint32_t	m_plyNum { }
	Current ply number.

std::uint8_t	m_halfMoveClock { }
	Current half move clock.

Square	m_kingSq { Square::E1 }
	King in turn.

Square	m_oppKingSq { Square::E8 }
	King in not turn.

Square	m_epSquare { Square::NONE }
	En-passant square.

std::array< Square, 4U >	m_castlingRooks { Square::A1, Square::H1, Square::A8, Square::H8 }
	Castling rooks.

Detailed Description

The chessboard.

The following move generator variants are provided:

Family	Description	Functions
Full move list	These generators produce all legal moves for a position.	`generateMoves()` `getNumberOfLegalMoves()`
Piece/destination move list	These generators produce all legal moves for a specified piece and piece destination square. This family is useful to resolve the minimal SAN notation for a move, for instance.	`generateMovesForPawnAndDestNoCapture()` `generateMovesForPawnAndDestCapture()` `generateMovesForPawnAndDestPromoNoCapture()` `generateMovesForPawnAndDestPromoCapture()` `generateMovesForKnightAndDest()` `generateMovesForBishopAndDest()` `generateMovesForRookAndDest()` `generateMovesForQueenAndDest()` `generateMovesForKingAndDest()` `generateMovesForLongCastling()` `generateMovesForShortCastling()`
Piece/destination/source single move	These generators produce a single legal move for a piece, destination square, and allowed source square set. This family is useful for playing out moves in SAN notation in PGNs, for instance.	`generateSingleMoveForPawnAndDestNoCapture()` `generateSingleMoveForPawnAndDestCapture()` `generateSingleMoveForPawnAndDestPromoNoCapture()` `generateSingleMoveForPawnAndDestPromoCapture()` `generateSingleMoveForKnightAndDest()` `generateSingleMoveForBishopAndDest()` `generateSingleMoveForRookAndDest()` `generateSingleMoveForQueenAndDest()` `generateSingleMoveForKingAndDest()` `generateSingleMoveForLongCastling()` `generateSingleMoveForShortCastling()`

Constructor & Destructor Documentation

◆ ChessBoard() [1/3]

hoover_chess_utils::pgn_reader::ChessBoard::ChessBoard ( )

noexcept

Constructor (default)

The default constructor sets the board to the standard starting position.

◆ ChessBoard() [2/3]

hoover_chess_utils::pgn_reader::ChessBoard::ChessBoard ( const ChessBoard & )

defaultnoexcept

Constructor (copy)

◆ ChessBoard() [3/3]

hoover_chess_utils::pgn_reader::ChessBoard::ChessBoard ( ChessBoard && )

defaultnoexcept

Constructor (move)

◆ ~ChessBoard()

hoover_chess_utils::pgn_reader::ChessBoard::~ChessBoard ( )

defaultnoexcept

Destructor.

Member Function Documentation

◆ calculateMasks()

void hoover_chess_utils::pgn_reader::ChessBoard::calculateMasks ( const ArrayBoard & board )

privatenoexcept

Calculates bitboard masks for an ArrayBoard object.

Parameters

[in] board Chess board in array (mailbox) format

◆ determineStatus()

PositionStatus hoover_chess_utils::pgn_reader::ChessBoard::determineStatus ( ) const

inlinenoexcept

Determines the status of the position.

Returns: Status of the position

This function determines whether there are any legal moves. Then, the status is returned as per the following table:

Legal moves	`getCheckers()`	Returned status
Yes	`SquareSet::none()`	`PositionStatus::NORMAL`
Yes	Other	`PositionStatus::CHECK`
No	`SquareSet::none()`	`PositionStatus::STALEMATE`
No	Other	`PositionStatus::MATE`

◆ doMove()

void hoover_chess_utils::pgn_reader::ChessBoard::doMove ( Move m )

noexcept

Applies a move on the current position. The move is assumed to be legal, and it must be from one of the generators. No legality checks are done by this function.

Parameters

[in] m Move to apply

This function does the following:

Updates bit boards, castling rights, and EP square (m_epSquare) as per the move
Updates m_kingSq
Updates half move clock (m_halfMoveClock) and ply number (m_plyNum)
- Increase of m_plyNum changes the side to move
Swaps m_kingSq and m_oppKingSq
Flips turn color mask (m_turnColorMask)
Recalculates checkers (m_checkers)

◆ generateMoves()

std::size_t hoover_chess_utils::pgn_reader::ChessBoard::generateMoves ( MoveList & moves ) const

inlinenoexcept

Generates a list of all legal moves for the current position.

Parameters

[in] moves Caller-allocated move list

Returns: Number of moves added in the move list

◆ generateMovesForBishopAndDest()

std::size_t hoover_chess_utils::pgn_reader::ChessBoard::generateMovesForBishopAndDest	(	ShortMoveList &	moves,
		SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a list of legal bishop moves with a known destination square. May be capturing.

Parameters

[out]	moves	List of returned moves
[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Number of returned moves

◆ generateMovesForKingAndDest()

std::size_t hoover_chess_utils::pgn_reader::ChessBoard::generateMovesForKingAndDest	(	ShortMoveList &	moves,
		SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a list of legal king moves with a known destination square. May be capturing.

Parameters

[out]	moves	List of returned moves
[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Number of returned moves

◆ generateMovesForKnightAndDest()

std::size_t hoover_chess_utils::pgn_reader::ChessBoard::generateMovesForKnightAndDest	(	ShortMoveList &	moves,
		SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a list of legal knight moves with a known destination square. May be capturing.

Parameters

[out]	moves	List of returned moves
[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Number of returned moves

◆ generateMovesForLongCastling()

std::size_t hoover_chess_utils::pgn_reader::ChessBoard::generateMovesForLongCastling ( ShortMoveList & moves ) const

inlinenoexcept

Generates the long castling move in a list, if legal.

Parameters

[out] moves List of returned moves

Returns: Number of returned moves

◆ generateMovesForPawnAndDestCapture()

std::size_t hoover_chess_utils::pgn_reader::ChessBoard::generateMovesForPawnAndDestCapture	(	ShortMoveList &	moves,
		SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a list of legal non-promoting, capturing pawn moves with a known destination square.

Parameters

[out]	moves	List of returned moves
[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Number of returned moves

◆ generateMovesForPawnAndDestNoCapture()

std::size_t hoover_chess_utils::pgn_reader::ChessBoard::generateMovesForPawnAndDestNoCapture	(	ShortMoveList &	moves,
		SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a list of legal non-promoting, non-capturing pawn moves with a known destination square.

Parameters

[out]	moves	List of returned moves
[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Number of returned moves

◆ generateMovesForPawnAndDestPromoCapture()

std::size_t hoover_chess_utils::pgn_reader::ChessBoard::generateMovesForPawnAndDestPromoCapture	(	ShortMoveList &	moves,
		SquareSet	srcSqMask,
		Square	dst,
		Piece	promo
	)		const

inlinenoexcept

Generates a list of legal promoting, capturing pawn moves with a known destination square.

Parameters

[out]	moves	List of returned moves
[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square
[in]	promo	Promotion piece

Returns: Number of returned moves

◆ generateMovesForPawnAndDestPromoNoCapture()

std::size_t hoover_chess_utils::pgn_reader::ChessBoard::generateMovesForPawnAndDestPromoNoCapture	(	ShortMoveList &	moves,
		SquareSet	srcSqMask,
		Square	dst,
		Piece	promo
	)		const

inlinenoexcept

Generates a list of legal promoting, non-capturing pawn moves with a known destination square.

Parameters

[out]	moves	List of returned moves
[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square
[in]	promo	Promotion piece

Returns: Number of returned moves

◆ generateMovesForQueenAndDest()

std::size_t hoover_chess_utils::pgn_reader::ChessBoard::generateMovesForQueenAndDest	(	ShortMoveList &	moves,
		SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a list of legal queen moves with a known destination square. May be capturing.

Parameters

[out]	moves	List of returned moves
[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Number of returned moves

◆ generateMovesForRookAndDest()

std::size_t hoover_chess_utils::pgn_reader::ChessBoard::generateMovesForRookAndDest	(	ShortMoveList &	moves,
		SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a list of legal rook moves with a known destination square. May be capturing.

Parameters

[out]	moves	List of returned moves
[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Number of returned moves

◆ generateMovesForShortCastling()

std::size_t hoover_chess_utils::pgn_reader::ChessBoard::generateMovesForShortCastling ( ShortMoveList & moves ) const

inlinenoexcept

Generates the short castling move in a list, if legal.

Parameters

[out] moves List of returned moves

Returns: Number of returned moves

◆ generateSingleMoveForBishopAndDest()

Move hoover_chess_utils::pgn_reader::ChessBoard::generateSingleMoveForBishopAndDest	(	SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a legal bishop move with a known destination square. May be capturing.

Parameters

[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Move. In case a move was not found or it was ambiguous, Move::isIllegal() returns true.

◆ generateSingleMoveForKingAndDest()

Move hoover_chess_utils::pgn_reader::ChessBoard::generateSingleMoveForKingAndDest	(	SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a legal king move with a known destination square. May be capturing.

Parameters

[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Move. In case a move was not found or it was ambiguous, Move::isIllegal() returns true.

◆ generateSingleMoveForKnightAndDest()

Move hoover_chess_utils::pgn_reader::ChessBoard::generateSingleMoveForKnightAndDest	(	SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a legal knight move with a known destination square. May be capturing.

Parameters

[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Move. In case a move was not found or it was ambiguous, Move::isIllegal() returns true.

◆ generateSingleMoveForLongCastling()

Move hoover_chess_utils::pgn_reader::ChessBoard::generateSingleMoveForLongCastling ( ) const

inlinenoexcept

Generates a legal long castling move.

Returns: Move. In case a move was not found or it was ambiguous, Move::isIllegal() returns true.

◆ generateSingleMoveForPawnAndDestCapture()

Move hoover_chess_utils::pgn_reader::ChessBoard::generateSingleMoveForPawnAndDestCapture	(	SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a legal non-promoting, capturing pawn move with a known destination square.

Parameters

[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Move. In case a move was not found or it was ambiguous, Move::isIllegal() returns true.

◆ generateSingleMoveForPawnAndDestNoCapture()

Move hoover_chess_utils::pgn_reader::ChessBoard::generateSingleMoveForPawnAndDestNoCapture	(	SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a legal non-promoting, non-capturing pawn move with a known destination square.

Parameters

[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Move. In case a move was not found or it was ambiguous, Move::isIllegal() returns true.

◆ generateSingleMoveForPawnAndDestPromoCapture()

Move hoover_chess_utils::pgn_reader::ChessBoard::generateSingleMoveForPawnAndDestPromoCapture	(	SquareSet	srcSqMask,
		Square	dst,
		Piece	promo
	)		const

inlinenoexcept

Generates a legal promoting, capturing pawn move with a known destination square.

Parameters

[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square
[in]	promo	Promotion piece

Returns: Move. In case a move was not found or it was ambiguous, Move::isIllegal() returns true.

◆ generateSingleMoveForPawnAndDestPromoNoCapture()

Move hoover_chess_utils::pgn_reader::ChessBoard::generateSingleMoveForPawnAndDestPromoNoCapture	(	SquareSet	srcSqMask,
		Square	dst,
		Piece	promo
	)		const

inlinenoexcept

Generates a legal promoting, non-capturing pawn move with a known destination square.

Parameters

[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square
[in]	promo	Promotion piece

Returns: Move. In case a move was not found or it was ambiguous, Move::isIllegal() returns true.

◆ generateSingleMoveForQueenAndDest()

Move hoover_chess_utils::pgn_reader::ChessBoard::generateSingleMoveForQueenAndDest	(	SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a legal queen move with a known destination square. May be capturing.

Parameters

[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Move. In case a move was not found or it was ambiguous, Move::isIllegal() returns true.

◆ generateSingleMoveForRookAndDest()

Move hoover_chess_utils::pgn_reader::ChessBoard::generateSingleMoveForRookAndDest	(	SquareSet	srcSqMask,
		Square	dst
	)		const

inlinenoexcept

Generates a legal rook move with a known destination square. May be capturing.

Parameters

[in]	srcSqMask	Allowed source squares
[in]	dst	Destination square

Returns: Move. In case a move was not found or it was ambiguous, Move::isIllegal() returns true.

◆ generateSingleMoveForShortCastling()

Move hoover_chess_utils::pgn_reader::ChessBoard::generateSingleMoveForShortCastling ( ) const

inlinenoexcept

Generates a legal short castling move.

Returns: Move. In case a move was not found or it was ambiguous, Move::isIllegal() returns true.

◆ getArrayBoard()

void hoover_chess_utils::pgn_reader::ChessBoard::getArrayBoard ( ArrayBoard & out_board ) const

noexcept

Extracts the current position as an ArrayBoard.

Parameters

[out] out_board Current position

See also: setBoard()

◆ getBishops()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getBishops ( ) const

inlinenoexcept

Returns squares occupied by bishops.

Returns: Bishops

◆ getBishopsAndQueens()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getBishopsAndQueens ( ) const

inlinenoexcept

Returns squares occupied by bishops and queens (diagonal sliders)

Returns: Bishops and queens

◆ getBlackLongCastleRook()

Square hoover_chess_utils::pgn_reader::ChessBoard::getBlackLongCastleRook ( ) const

inlinenoexcept

Shorthand for getCastlingRook(Color::BLACK, false).

Returns: Rook square if black can castle long; or Square::NONE

◆ getBlackPieces()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getBlackPieces ( ) const

inlinenoexcept

Returns squares occupied by white pieces (including pawns).

Returns: Occupied squares

◆ getBlackShortCastleRook()

Square hoover_chess_utils::pgn_reader::ChessBoard::getBlackShortCastleRook ( ) const

inlinenoexcept

Shorthand for getCastlingRook(Color::BLACK, true).

Returns: Rook square if black can castle short; or Square::NONE

◆ getCastlingRook()

Square hoover_chess_utils::pgn_reader::ChessBoard::getCastlingRook	(	Color	c,
		bool	shortCastling
	)		const

inlinenoexcept

Returns castling rook square if castling rights apply or Square::NONE if no castling rights.

Parameters

[in]	c	Side to move
[in]	shortCastling	Whether short castling is in question

Returns: Square of the rook or Square::NONE if no castling rights.

◆ getCastlingRookIndex()

static constexpr std::size_t hoover_chess_utils::pgn_reader::ChessBoard::getCastlingRookIndex	(	Color	c,
		bool	shortCastling
	)

inlinestaticconstexprprivatenoexcept

Returns the array index for a castling rook.

Parameters

[in]	c	Side
[in]	shortCastling	Whether short castling is in question

Returns: Array index for accessing m_castlingRooks.

See also: getCastlingRook()

◆ getCastlingRookRef()

Square & hoover_chess_utils::pgn_reader::ChessBoard::getCastlingRookRef	(	Color	c,
		bool	shortCastling
	)

inlineprivatenoexcept

Gets a reference to the castling rights rook for direct read/write access.

Parameters

[in]	c	Side
[in]	shortCastling	Whether short castling rights are accessed

Returns: Square for the castling rook

◆ getCheckers()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getCheckers ( ) const

inlinenoexcept

Returns squares occupied by checkers.

Returns: Checkers

◆ getCurrentPlyNum()

std::uint_fast32_t hoover_chess_utils::pgn_reader::ChessBoard::getCurrentPlyNum ( ) const

inlinenoexcept

Full move counter in plies.

Ply number 0 means white's first move, and ply number 1 means black's first move.

See also: moveNumOfPly(), colorOfPly()

◆ getEpSquare()

Square hoover_chess_utils::pgn_reader::ChessBoard::getEpSquare ( ) const

inlinenoexcept

Returns the en-passant square or Square::NONE if en-passant capture is not possible.

Returns: En-passant square or Square::NONE if EP-capture is not legal.

Remarks: When EP square is other than Square::NONE, at least one EP capture is guaranteed to be legal.; When the king is in check, EP capture may be legal only when the checker is the EP-capturable pawn. When this is not the case, this function returns Square::NONE.; See getPinnedPieces() for a discussion on pin handling related to EP captures.

◆ getHalfMoveClock()

std::uint_fast8_t hoover_chess_utils::pgn_reader::ChessBoard::getHalfMoveClock ( ) const

inlinenoexcept

Current half-move clock.

Half-move clock is used to determine 50-move rule and similar draw termination rules.

◆ getKingInTurn()

Square hoover_chess_utils::pgn_reader::ChessBoard::getKingInTurn ( ) const

inlinenoexcept

Returns the square of the king in turn.

Returns: King square

◆ getKingNotInTurn()

Square hoover_chess_utils::pgn_reader::ChessBoard::getKingNotInTurn ( ) const

inlinenoexcept

Returns the square of the king not in turn.

Returns: King square

◆ getKings()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getKings ( ) const

inlinenoexcept

Returns squares occupied by kings.

Returns: Kings

◆ getKnights()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getKnights ( ) const

inlinenoexcept

Returns squares occupied by knights.

Returns: Knights

◆ getNumberOfLegalMoves()

std::size_t hoover_chess_utils::pgn_reader::ChessBoard::getNumberOfLegalMoves ( ) const

inlinenoexcept

Returns the number of legal moves for the current position. This function is mostly useful for calculating the moves in perft leaf positions.

Returns: Number of legal moves

See also: https://www.chessprogramming.org/Perft

◆ getOccupancyMask()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getOccupancyMask ( ) const

inlinenoexcept

Returns squares that are occupied by pieces (including pawns).

Returns: Occupied squares

◆ getPawns()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getPawns ( ) const

inlinenoexcept

Returns squares occupied by pawns.

Returns: Pawns

◆ getPiecesInTurn()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getPiecesInTurn ( ) const

inlinenoexcept

Returns squares that are occupied by pieces (including pawns) that belong to the side to move.

Returns: Occupied squares, pieces belonging to the side to move

◆ getPinnedPieces()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getPinnedPieces ( ) const

inlinenoexcept

Returns squares occupied by absolutely pinned pieces.

Returns: Pinned pieces

Remarks

The en passant capturable pawn is never marked as pinned. There are three cases to consider:

A diagonal pin. In this case, the EP-capturable pawn can never be EP-captured. getEpSquare() returns Square::NONE.
A vertical false pin. In this case, the EP-capturing pawn blocks the exposed check when capturing, hence, EP capture is allowed—provided that the EP-capture is otherwise legal.

A horizontal pin. In this case, both the EP-capturing pawn and the EP-capturable pawn leave the rank, revealing a check. Again, in this case, getEpSquare() returns Square::NONE to signal that EP-capture is not allowed.

Three cases of pins related to EP-capturing

Case

Example

(1) Diagonally pinned EP-capturable pawn

			bB

	(ep)
	bP	wP

wK

(2) Vertically pinned EP-capturable pawn

		bR

		(ep)
		bP	wP

		wK

(3) Horizontally pinned EP-capturable pawn



	(ep)
wK	bP	wP	bR

See also: getEpSquare()

◆ getQueens()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getQueens ( ) const

inlinenoexcept

Returns squares occupied by queens.

Returns: Queens

◆ getRooks()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getRooks ( ) const

inlinenoexcept

Returns squares occupied by rooks.

Returns: Rooks

◆ getRooksAndQueens()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getRooksAndQueens ( ) const

inlinenoexcept

Returns squares occupied by rooks and queens (horizontal/vertical sliders)

Returns: Rooks and queens

◆ getSquarePiece()

PieceAndColor hoover_chess_utils::pgn_reader::ChessBoard::getSquarePiece ( Square sq ) const

noexcept

Returns the piece and color on a specified square.

Parameters

[in] sq Square to query

Returns: Piece and color on sq or PieceAndColor::NONE.

Note: This function may be slower than expected, since it decodes the piece from bit masks.

◆ getSquarePieceNoColor()

Piece hoover_chess_utils::pgn_reader::ChessBoard::getSquarePieceNoColor ( Square sq ) const

noexcept

Returns the piece on a specified square.

Parameters

[in] sq Square to query

Returns: Piece on sq or Piece::NONE.

Note: This function may be slower than expected, since it decodes the piece from bit masks.

◆ getTurn()

Color hoover_chess_utils::pgn_reader::ChessBoard::getTurn ( ) const

inlinenoexcept

Returns side to move.

Returns: Side to move

◆ getWhiteLongCastleRook()

Square hoover_chess_utils::pgn_reader::ChessBoard::getWhiteLongCastleRook ( ) const

inlinenoexcept

Shorthand for getCastlingRook(Color::WHITE, false).

Returns: Rook square if white can castle long; or Square::NONE

◆ getWhitePieces()

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::getWhitePieces ( ) const

inlinenoexcept

Returns squares occupied by white pieces (including pawns).

Returns: Occupied squares

◆ getWhiteShortCastleRook()

Square hoover_chess_utils::pgn_reader::ChessBoard::getWhiteShortCastleRook ( ) const

inlinenoexcept

Shorthand for getCastlingRook(Color::WHITE, true).

Returns: Rook square if white can castle short; or Square::NONE

◆ hasLegalMoves()

bool hoover_chess_utils::pgn_reader::ChessBoard::hasLegalMoves ( ) const

inlinenoexcept

Determines whether any legal moves as available in the current position.

Returns: Legal moves available.

◆ isInCheck()

bool hoover_chess_utils::pgn_reader::ChessBoard::isInCheck ( ) const

inlinenoexcept

Returns whether the king is in check.

Returns: Whether the king is in check

◆ loadFEN()

void hoover_chess_utils::pgn_reader::ChessBoard::loadFEN ( std::string_view fen )

Sets the board from FEN.

Parameters

[in] fen Position described in Forsyth–Edwards Notation (FEN)

Exceptions

PgnError(PgnErrorCode::BAD_FEN)	Malformed FEN (e.g., too many rows or columns; bad character; bad castling indicator)
PgnError(PgnErrorCode::BAD_FEN)	Pawns on 1st/8th rank
PgnError(PgnErrorCode::BAD_FEN)	EP square on wrong rank or not empty; no EP pawn to capture.
PgnError(PgnErrorCode::BAD_FEN)	Wrong number of kings
PgnError(PgnErrorCode::BAD_FEN)	Opponent king is in check

The castling indicator may be in FEN, Shredded-FEN, or X-FEN format.

EP capture does not have to be a legal move as long as the EP square is empty and there is a pawn to capture. If case there is no legal EP capture moves (but the other requirements are met), this function resets the EP square.

Note: In case an exception is thrown, the board may be left in a bad state.

See also: setBoard(); https://en.wikipedia.org/wiki/Forsyth%E2%80%93Edwards_Notation

◆ loadStartPos()

void hoover_chess_utils::pgn_reader::ChessBoard::loadStartPos ( )

inlinenoexcept

Loads the starting position.

Resets the board to the regular starting position. Resets also half move clock and ply count.

This is equivalent to assigning a default-constructed ChessBoard.

◆ operator=() [1/2]

ChessBoard & hoover_chess_utils::pgn_reader::ChessBoard::operator= ( ChessBoard && )

defaultnoexcept

Move assignment.

◆ operator=() [2/2]

ChessBoard & hoover_chess_utils::pgn_reader::ChessBoard::operator= ( const ChessBoard & )

defaultnoexcept

Assignment.

◆ operator==()

bool hoover_chess_utils::pgn_reader::ChessBoard::operator== ( const ChessBoard & o ) const

noexcept

Comparison operator (equality)

Parameters

[in] o Another chessboard

Returns: Comparison result

◆ printBoard()

void hoover_chess_utils::pgn_reader::ChessBoard::printBoard ( ) const

Prints the current board to stdout. This is intended only for debugging purposes.

◆ setBoard() [1/2]

void hoover_chess_utils::pgn_reader::ChessBoard::setBoard	(	const ArrayBoard &	board,
		Square	whiteLongCastleRook,
		Square	whiteShortCastleRook,
		Square	blackLongCastleRook,
		Square	blackShortCastleRook,
		Square	epSquare,
		std::uint_fast8_t	halfMoveClock,
		std::uint_fast32_t	plyNum
	)

Sets the board from an array board (aka Mailbox)

Parameters

[in]	board	Array board containing pieces for squares
[in]	whiteLongCastleRook	White long castling rook or `Square::NONE` if no long castling rights.
[in]	whiteShortCastleRook	White short castling rook or `Square::NONE` if no short castling rights.
[in]	blackLongCastleRook	Black long castling rook or `Square::NONE` if no long castling rights.
[in]	blackShortCastleRook	Black short castling rook or `Square::NONE` if no short castling rights.
[in]	epSquare	En-passant square or `Square::NONE` if en-passant capture is not possible.
[in]	halfMoveClock	Half-move clock
[in]	plyNum	Ply num. Use `makePlyNum()` if necessary.

Exceptions

PgnError(PgnErrorCode::BAD_FEN)	Invalid input parameter, e.g., bad Square value
PgnError(PgnErrorCode::BAD_FEN)	Inconsistent castling rights, e.g., castling rook not found, king not on 1st/8th rank, castling rook on the wrong side
PgnError(PgnErrorCode::BAD_FEN)	Pawns on 1st/8th rank
PgnError(PgnErrorCode::BAD_FEN)	EP square on wrong rank or not empty; no EP pawn to capture.
PgnError(PgnErrorCode::BAD_FEN)	Wrong number of kings
PgnError(PgnErrorCode::BAD_FEN)	Opponent king is in check
PgnError(PgnErrorCode::BAD_FEN)	Move number overflow (max: 99999)

EP capture does not have to be a legal move as long as the EP square is empty and there is a pawn to capture. If case there is no legal EP capture moves (but the other requirements are met), this function resets the EP square.

Note: In case an exception is thrown, the board may be left in a bad state.

See also: loadFEN()

◆ setBoard() [2/2]

void hoover_chess_utils::pgn_reader::ChessBoard::setBoard	(	const BitBoard &	board,
		Square	whiteLongCastleRook,
		Square	whiteShortCastleRook,
		Square	blackLongCastleRook,
		Square	blackShortCastleRook,
		Square	epSquare,
		std::uint_fast8_t	halfMoveClock,
		std::uint_fast32_t	plyNum
	)

Sets the board from SquareSets (bit board)

Parameters

[in]	board	Array board containing pieces for squares
[in]	whiteLongCastleRook	White long castling rook or `Square::NONE` if no long castling rights.
[in]	whiteShortCastleRook	White short castling rook or `Square::NONE` if no short castling rights.
[in]	blackLongCastleRook	Black long castling rook or `Square::NONE` if no long castling rights.
[in]	blackShortCastleRook	Black short castling rook or `Square::NONE` if no short castling rights.
[in]	epSquare	En-passant square or `Square::NONE` if en-passant capture is not possible.
[in]	halfMoveClock	Half-move clock
[in]	plyNum	Ply num. Use `makePlyNum()` if necessary.

Exceptions

PgnError(PgnErrorCode::BAD_FEN)	Invalid input parameter, e.g., bad Square value
PgnError(PgnErrorCode::BAD_FEN)	Inconsistent castling rights, e.g., castling rook not found, king not on 1st/8th rank, castling rook on the wrong side
PgnError(PgnErrorCode::BAD_FEN)	Pawns on 1st/8th rank
PgnError(PgnErrorCode::BAD_FEN)	EP square on wrong rank or not empty; no EP pawn to capture.
PgnError(PgnErrorCode::BAD_FEN)	Wrong number of kings
PgnError(PgnErrorCode::BAD_FEN)	Opponent king is in check
PgnError(PgnErrorCode::BAD_FEN)	Move number overflow (max: 99999)
PgnError(PgnErrorCode::BAD_FEN)	More than one piece occupying a square (intersection of per-piece `SquareSet`s is not empty)

EP capture does not have to be a legal move as long as the EP square is empty and there is a pawn to capture.

Note: In case an exception is thrown, the board may be left in a bad state.

See also: loadFEN()

◆ setCastlingRook()

void hoover_chess_utils::pgn_reader::ChessBoard::setCastlingRook	(	Color	c,
		bool	shortCastling,
		Square	sq
	)

inlineprivatenoexcept

Sets/resets castling rights and the associated rook.

Parameters

[in]	c	Side
[in]	shortCastling	Whether short castling rights are set/reset
[in]	sq	Castling rook or `Square::NONE` for no castling rights

◆ updateCheckersAndPins()

void hoover_chess_utils::pgn_reader::ChessBoard::updateCheckersAndPins ( )

privatenoexcept

Determines checkers and pinned pieces.

This function sets m_checkers and m_pinnedPieces.

◆ validateBoard()

void hoover_chess_utils::pgn_reader::ChessBoard::validateBoard ( )

private

Validates the board for items that are common for both setBoard() and loadFEN() and sets m_checkers.

Exceptions

PgnError(PgnErrorCode::BAD_FEN) Validation failed

Member Data Documentation

◆ m_bishops

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::m_bishops

private

Initial value:

{
        SquareSet::square(Square::C1) | SquareSet::square(Square::F1) |
        SquareSet::square(Square::C8) | SquareSet::square(Square::F8) |
        SquareSet::square(Square::D1) | SquareSet::square(Square::D8) }

Bishops and queens.

See also: getBishopsAndQueens()

◆ m_castlingRooks

std::array<Square, 4U> hoover_chess_utils::pgn_reader::ChessBoard::m_castlingRooks { Square::A1, Square::H1, Square::A8, Square::H8 }

private

Castling rooks.

The castling rooks are in order:

white long castling rook
white short castling rook
black long castling rook
black short castling rook

Rook square Square::NONE signifies no castling right.

See also: getCastlingRookIndex()

◆ m_checkers

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::m_checkers { }

private

Squares where there is a checker.

Remarks: Set by updateCheckersAndPins()

◆ m_epSquare

Square hoover_chess_utils::pgn_reader::ChessBoard::m_epSquare { Square::NONE }

private

En-passant square.

See also: getEpSquare()

◆ m_halfMoveClock

std::uint8_t hoover_chess_utils::pgn_reader::ChessBoard::m_halfMoveClock { }

private

Current half move clock.

See also: getHalfMoveClock()

◆ m_kings

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::m_kings { SquareSet::square(Square::E1) | SquareSet::square(Square::E8) }

private

Kings.

See also: getKings()

◆ m_kingSq

Square hoover_chess_utils::pgn_reader::ChessBoard::m_kingSq { Square::E1 }

private

King in turn.

See also: m_kings, m_turnColorMask

◆ m_knights

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::m_knights

private

Initial value:

{
        SquareSet::square(Square::B1) | SquareSet::square(Square::G1) |
        SquareSet::square(Square::B8) | SquareSet::square(Square::G8) }

Knights.

See also: getKnights()

◆ m_moveGenFns

const MoveGenFunctions* hoover_chess_utils::pgn_reader::ChessBoard::m_moveGenFns

private

Move generator functions for this position.

See also: MoveGenType

◆ m_occupancyMask

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::m_occupancyMask { SquareSet::row(0U) | SquareSet::row(1U) | SquareSet::row(6U) | SquareSet::row(7U) }

private

Bit board of occupied squares.

See also: getOccupancyMask()

◆ m_oppKingSq

Square hoover_chess_utils::pgn_reader::ChessBoard::m_oppKingSq { Square::E8 }

private

King in not turn.

See also: m_kings, m_turnColorMask

◆ m_pawns

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::m_pawns { SquareSet::row(1U) | SquareSet::row(6U) }

private

Pawns.

See also: getPawns()

◆ m_pinnedPieces

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::m_pinnedPieces { }

private

Squares with pinned pieces.

Remarks: Set by updateCheckersAndPins()

◆ m_plyNum

std::uint32_t hoover_chess_utils::pgn_reader::ChessBoard::m_plyNum { }

private

Current ply number.

See also: getCurrentPlyNum()

◆ m_rooks

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::m_rooks

private

Initial value:

{
        SquareSet::square(Square::A1) | SquareSet::square(Square::H1) |
        SquareSet::square(Square::A8) | SquareSet::square(Square::H8) |
        SquareSet::square(Square::D1) | SquareSet::square(Square::D8) }

Rooks and queens.

See also: getRooksAndQueens()

◆ m_turnColorMask

SquareSet hoover_chess_utils::pgn_reader::ChessBoard::m_turnColorMask { SquareSet::row(0U) | SquareSet::row(1U) }

private

Occupied squares that have the same color piece as getTurn()

See also: getPiecesInTurn(), getWhitePieces(), getBlackPieces()

The documentation for this class was generated from the following file:

pgn-reader/include/chessboard.h

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ChessBoard() [1/3]

◆ ChessBoard() [2/3]

◆ ChessBoard() [3/3]

◆ ~ChessBoard()

Member Function Documentation

◆ calculateMasks()

◆ determineStatus()

◆ doMove()

◆ generateMoves()

◆ generateMovesForBishopAndDest()

◆ generateMovesForKingAndDest()

◆ generateMovesForKnightAndDest()

◆ generateMovesForLongCastling()

◆ generateMovesForPawnAndDestCapture()

◆ generateMovesForPawnAndDestNoCapture()

◆ generateMovesForPawnAndDestPromoCapture()

◆ generateMovesForPawnAndDestPromoNoCapture()

◆ generateMovesForQueenAndDest()

◆ generateMovesForRookAndDest()

◆ generateMovesForShortCastling()

◆ generateSingleMoveForBishopAndDest()

◆ generateSingleMoveForKingAndDest()

◆ generateSingleMoveForKnightAndDest()

◆ generateSingleMoveForLongCastling()

◆ generateSingleMoveForPawnAndDestCapture()

◆ generateSingleMoveForPawnAndDestNoCapture()

◆ generateSingleMoveForPawnAndDestPromoCapture()

◆ generateSingleMoveForPawnAndDestPromoNoCapture()

◆ generateSingleMoveForQueenAndDest()

◆ generateSingleMoveForRookAndDest()

◆ generateSingleMoveForShortCastling()

◆ getArrayBoard()

◆ getBishops()

◆ getBishopsAndQueens()

◆ getBlackLongCastleRook()

◆ getBlackPieces()

◆ getBlackShortCastleRook()

◆ getCastlingRook()

◆ getCastlingRookIndex()

◆ getCastlingRookRef()

◆ getCheckers()

◆ getCurrentPlyNum()

◆ getEpSquare()

◆ getHalfMoveClock()

◆ getKingInTurn()

◆ getKingNotInTurn()

◆ getKings()

◆ getKnights()

◆ getNumberOfLegalMoves()

◆ getOccupancyMask()

◆ getPawns()

◆ getPiecesInTurn()

◆ getPinnedPieces()

◆ getQueens()

◆ getRooks()

◆ getRooksAndQueens()

◆ getSquarePiece()

◆ getSquarePieceNoColor()

◆ getTurn()

◆ getWhiteLongCastleRook()

◆ getWhitePieces()

◆ getWhiteShortCastleRook()

◆ hasLegalMoves()

◆ isInCheck()

◆ loadFEN()

◆ loadStartPos()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ printBoard()

◆ setBoard() [1/2]

◆ setBoard() [2/2]

◆ setCastlingRook()

◆ updateCheckersAndPins()
